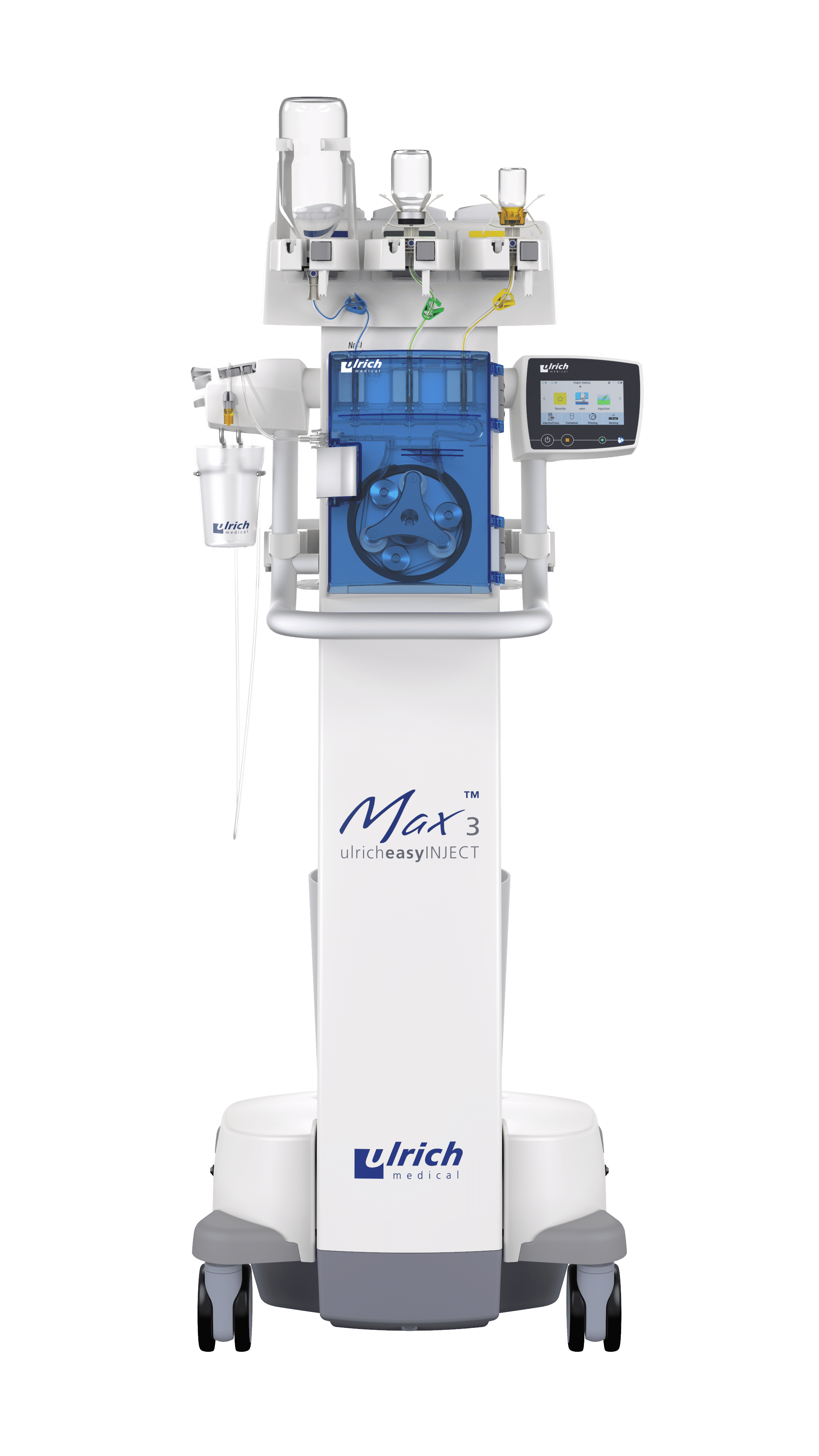

MR-Injector

SIMPLE & FLEXIBLE

• Only needs to be set up once a day
• Fastest patient changeover
• Intuitive operating concept

ECONOMICAL & EFFICIENT

• Low consumable costs
• Max 3: Optimal contrast medium management with CM-Loop and CM-Select
• Efficient workflows

HYGIENIC & SAFE

• Closed system: Direct injection from the original media containers
• Automatic patient-side air monitoring
• SafeConnect with touch protection

https://youtu.be/y4xeTgVSNjs?list=PLgH4T7iIhByCyBVOGV5Vjc-BjASUhtzMj

DO YOU WANT OPTIMAL WORKFLOW AND SATISFIED EMPLOYEES?

With the new generation of MRI contrast agent injectors from ulrich medical®, this is no longer just a pipe dream.

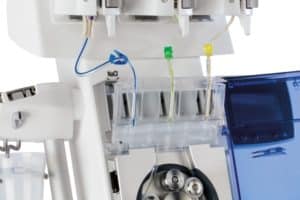

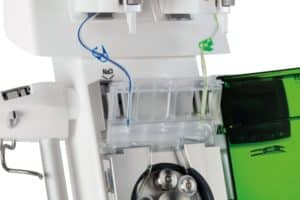

Insert the Easy-Click cassette, close the cover, connect the patient tube, attach the media container – and everything is ready for the first injection!

For each subsequent injection, only the patient tube needs to be changed – the Easy-Click cassette can remain in the injector for 24 hours and for any number of injections.

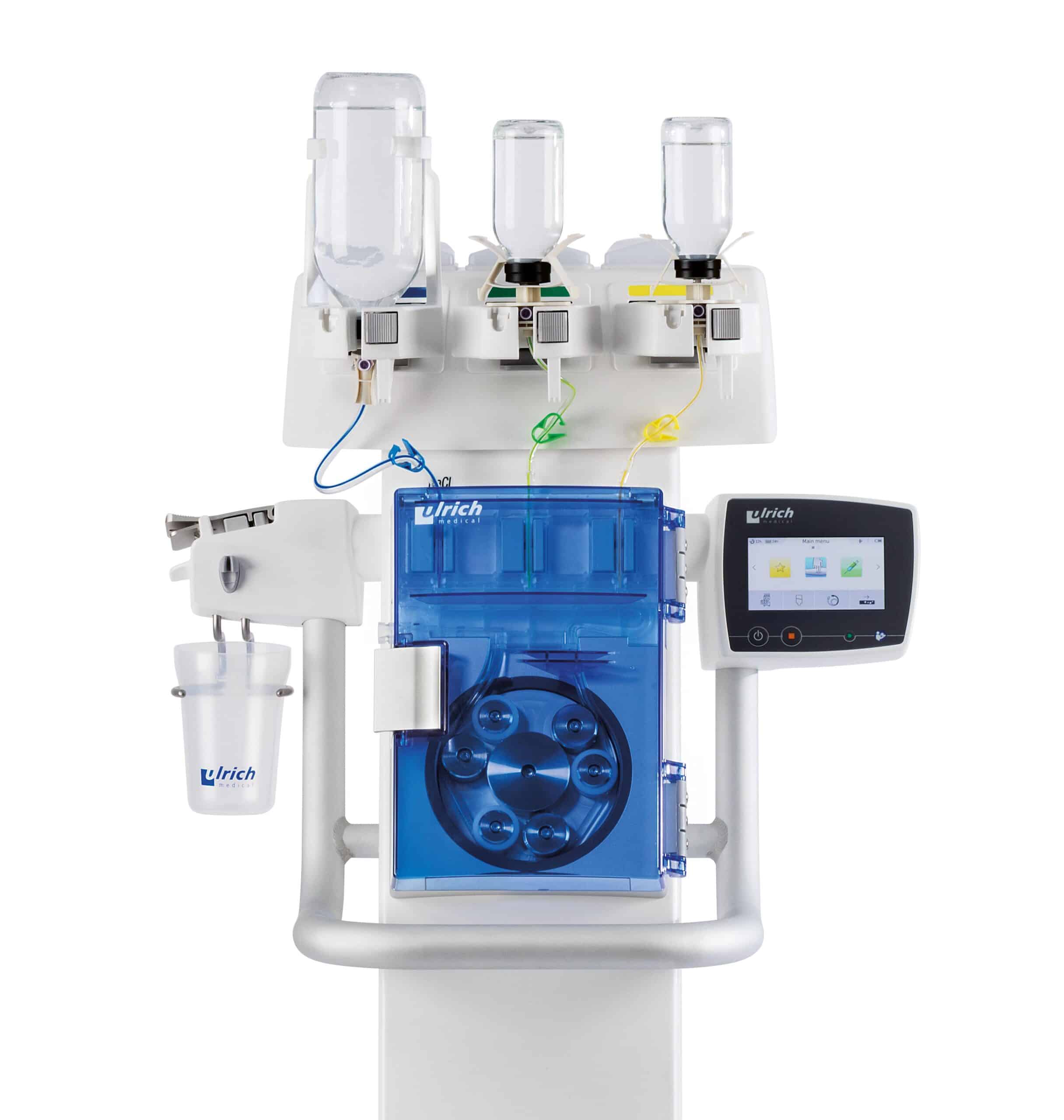

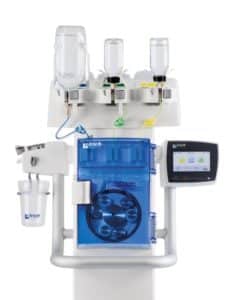

The three media slots allow you to selectively choose a second contrast medium. The function of switching between two identical contrast media also makes workflows easier.

DO YOU WANT TO SAVE COSTS?

Since the injection is carried out directly from the original media containers, it is possible to use large containers and thus achieve cost savings.

If two identical contrast media are inserted into both slots, the device automatically switches to the second contrast media bottle as soon as the first one is empty. This ensures optimal contrast media management.

With Max 3, you also reduce your consumable costs, as only the patient tube needs to be changed per patient.

DO YOU WANT THE HIGHEST LEVEL OF HYGIENE AND SAFETY?

Max 3 sets new standards in hygiene. The innovative SafeConnect offers optimum touch protection at the connection between the patient tube and the Easy-Click cassette.

As the injection is made directly from the original media containers, these are only pierced once. This ensures that the system remains closed at all times.

Together with the approved use of the Easy-Click cassette for up to 24 hours, you are always on the safe side.

The safety of your patients is our top priority: the unique patient-side air monitoring system provides reliable protection against critical air injections.

YOUR ENTRY INTO THE TOP CLASS

DO YOU WANT OPTIMAL WORKFLOW AND SATISFIED EMPLOYEES?

With the new generation of MRI contrast agent injectors from ulrich medical, this is no longer just a pipe dream.

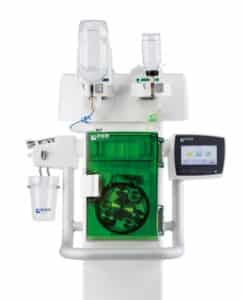

Whether as an introduction to automatic contrast agent administration or as a cost-effective solution for lower patient volumes, Max 2M offers unique advantages in workflow and application.

Contrast agent administration has never been so easy:

Insert the Easy-Click cassette, close the cover, connect the patient tube, attach the media container – and everything is ready for the first injection!

For each subsequent injection, only the patient tube needs to be changed – the Easy-Click cassette can remain in the injector for 24 hours and for any number of injections.

DO YOU WANT TO SAVE COSTS?

As the injection is administered directly from the original media containers, it is possible to use large containers and thus achieve cost savings.

With Max 2M, you also reduce your consumable costs, as only the patient tube needs to be changed for each patient.

DO YOU WANT THE HIGHEST LEVEL OF HYGIENE AND SAFETY?

Max 2M sets new standards in hygiene. The innovative SafeConnect offers optimum protection against contact at the connection between the patient tube and the Easy-Click cassette.

As the injection is administered directly from the original media containers, these are only pierced once. This ensures that the system remains closed at all times.

Together with the approved use of the Easy-Click cassette for up to 24 hours, you are always on the safe side.

The safety of your patients is our top priority: the unique patient-side air monitoring system provides reliable protection against critical air injections.

With approximately 70,000 new cases each year, breast cancer is the most common cancer among women in Germany. Mammography is currently considered the most effective method for the early detection of breast cancer in women between the ages of 50 and 69.

However, in some cases, conventional digital mammography is not sufficient to detect malignant tumours. The contrast between the tumour and the surrounding tissue may be so low that it is obscured by normal glandular tissue. To increase this contrast, contrast-enhanced mammography is now increasingly being used.

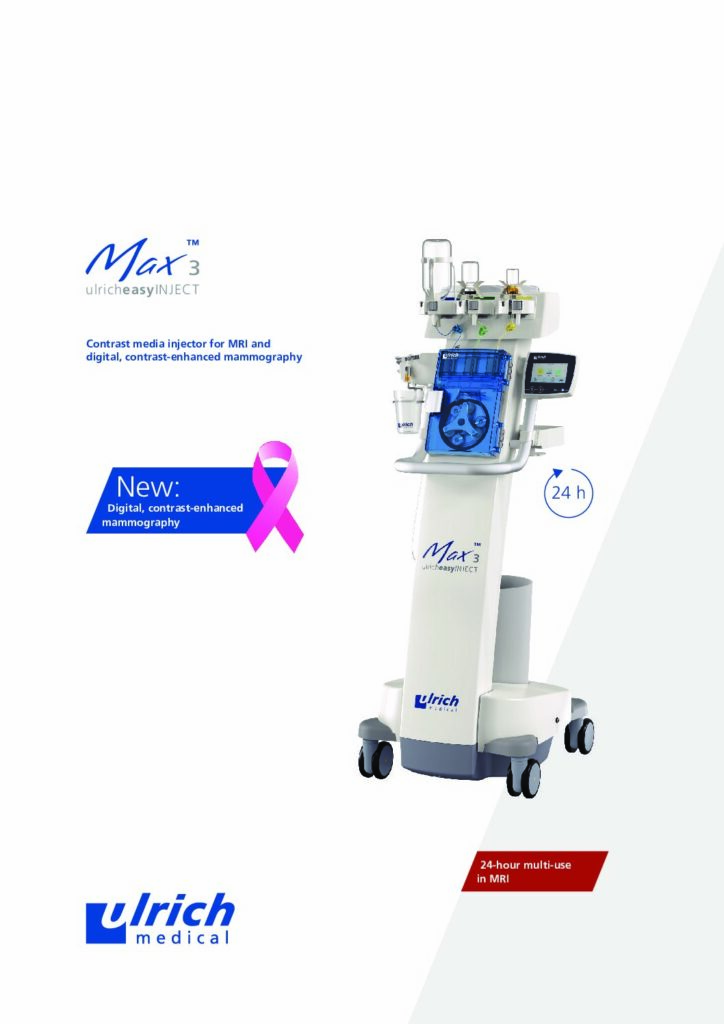

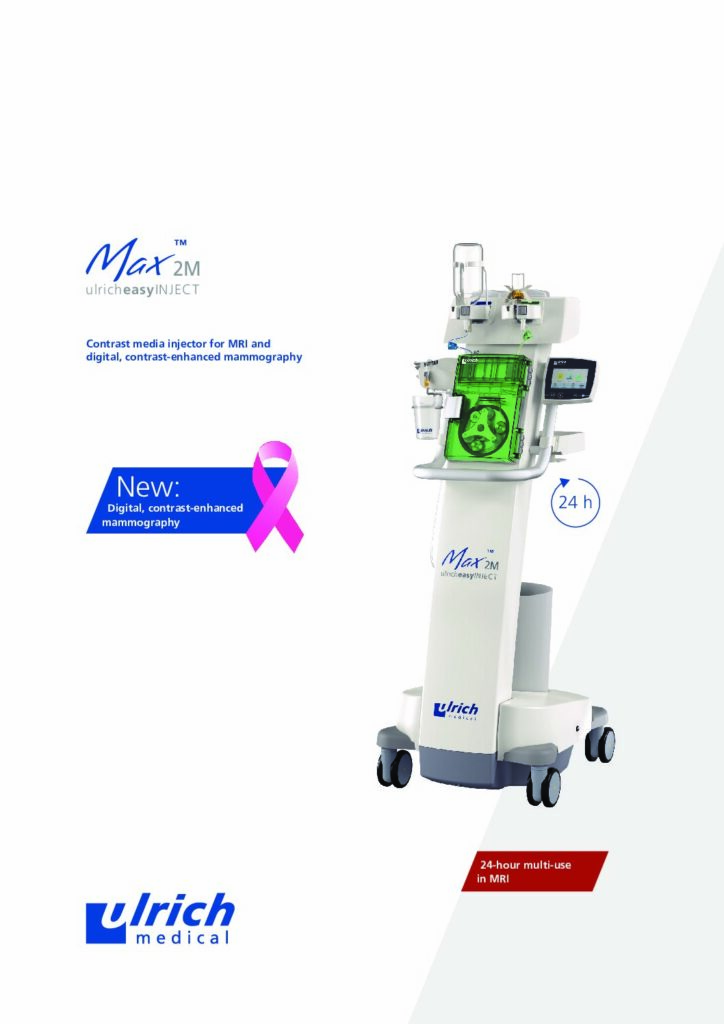

ulrich medical has expanded the performance portfolio of its user-friendly Max 2M and Max 3 injectors to include contrast-enhanced mammography (CEDM/CESM) and MR mammography. The small base of the injectors ensures sufficient space in the examination room. Accurate bolus administration improves the quality of imaging, and the continuous flow of contrast medium also ensures a fast and effective workflow.

Software options

SOFTWARE OPTIONS MAX 3 STANDARD

• CM-Loop:

Alternating switching between two identical contrast agents

• Keep-Vein-Open (KVO):

1 sec NaCl injection with flow rate 0.15 ml/s

• Residual quantity display:

KM and NaCl are displayed visually in ml on the injector and terminal

• NaCl-Backup:

If the KM volume is insufficient, the missing KM quantity is automatically replaced by NaCl during the injection.

• Manual pause, time-controlled pause, timer, elapsed time

SOFTWARE OPTIONS MAX 3 OPTIONAL

• CM-Select:

Selective selection of a second contrast agent when two different contrast agents are available.

• Vein check:

Checking the correct cannula position in the patient.

• Same patient:

Multiple examinations without changing the patient tube.

SOFTWAREOPTIONEN MAX 2 STANDARD

• Keep-Vein-Open (KVO):

1 Sek. NaCl-Injektion mit Flow 0,15 ml/s

• Restmengenanzeige:

KM und NaCl werden am Injektor und am Terminal optisch in ml-Angaben angezeigt

• NaCl-Backup:

Bei nicht ausreichendem KM-Volumen wird die fehlende KM-Menge während der Injektion automatisch durch NaCl ersetzt

• Manuelle Pause, Zeitgesteuerte Pause, Timer, Abgelaufene Zeit

SOFTWAREOPTIONEN MAX 2 OPTIONAL

• Venen Check:

Prüfung der korrekten Kanülenlage im Patienten

• Gleicher Patient:

Mehrfachuntersuchungen ohne Patientenschlauchwechsel

The two-part tubing system for the new generation of ulrich medical® MRI contrast agent injectors consists of:

• Easy-Click cassette:

Can be used for up to 24 hours for any number of injections

• Patient tubing with SafeConnect:

Can be used for any number of injections per patient, replacement and disposal after each patient

ADVANTAGES

• Quickest and easiest application by inserting the Easy-Click cassette with two clicks
• Maximum flexibility in the choice of contrast medium thanks to different holder sizes
• Low costs for consumables
• Maximum hygienic safety for users and patients thanks to SafeConnect with touch protection
